Customer Name 客户名称 |
||||
|
Customer Project/ Project No. 客户项目名称/项目编号 |
||||
|
Product Name 产品名称 |

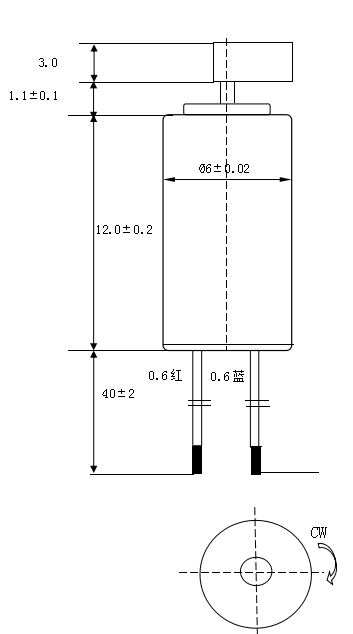

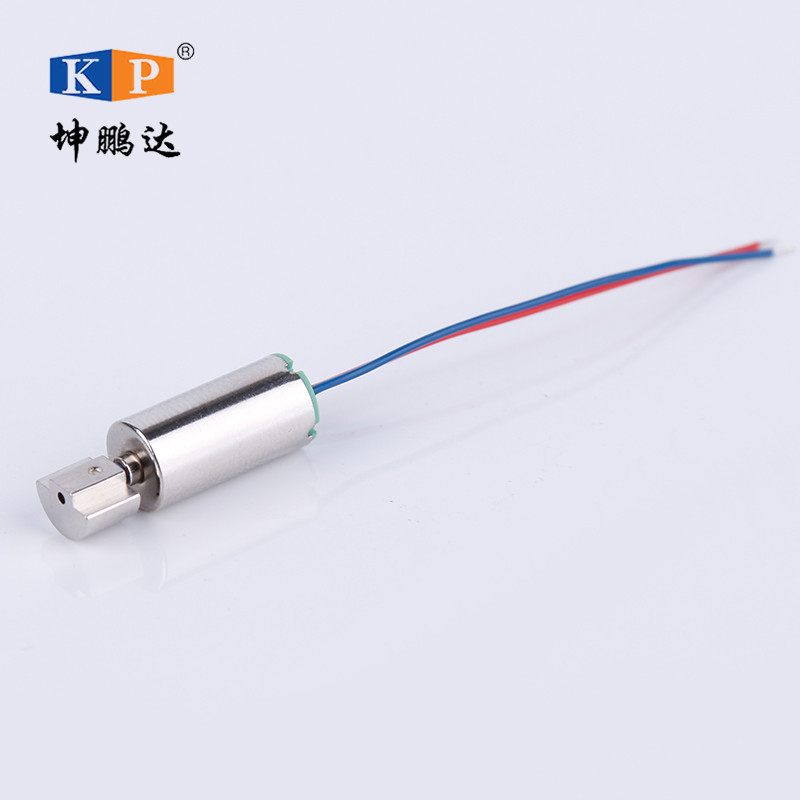

空心杯振动电机 | |||
|
Part No. 产品型号 |
KPD6C-0612 | |||
|
File Number 文件编号 |
KPD-20160909A1M-01 | |||
|
REV. 版 次 |
A/1 | |||
|
Product meet the requirements of ROHS 产品符合 ROHS 要求 |
||||
|
Customer Approved 客户确认 |
Checking 核 对 |
Inspection 审 查 |
Approval 批 准 |
Date 日期 |
|
RF Approved 本公司确认 |
Drawing 编 制 |
Checking 审 核 |
Approval 批 准 |
Date 日期 |
| 刘华 | 代小丽 | 杨广 | 2016-9-10 | |
| MODEL型号： | KPD6C-0612 | ||||
| 1.使用条件/Operating condition | |||||
| 项目/Item | 规格/Specification | 条件.备注/Condition remark | |||
| 1-1 |
额定电压 Rated voltage |
3.0V DC | |||
| 1-2 |
额定负载 Rated load |
Vibration weight 偏心轮:2.5*3 |
|||
| 1-3 |
额定转速 Rated speed |
13500±10%RPM | |||
|
1-4 |
旋转方向 Rotation |
CW(clockwise) | |||
| 1-5 |
马达位置 Motor position |
全方位 All position |
|||
| 1-6 |
使用电压范围 Operation voltage |
1.0~6.0V DC | |||
| 1-7 |
使用环境 Operating environment |
-30~80°C，Ordinary Humidity |
无水气凝结 No condensation of moisture |
||
| 1-8 |
保存环境 Storage environment |
-40~80°C, Ordinary Humidity |
无水气凝结 No condensation of moisture |
||
| 2.测定条件/Measuring condition |
| 项目/Item | 规格/Specification | 条件.备注/Condition remark | ||
|
2-1 |
温度 Temperature |
20±2℃ | ||
|
2-2 |
湿度 Humidity |
（63%~67%）RH | ||
|
2-3 |
位置 Motor position |
轴向水平 Motor shaft horizontal |
将马达固定在试验台上 Lock the motor in a test fixture |
|
| 3.性能特征/Performance and characteristics | ||||
| 项目/Item | 规格/Specification | 条件.备注/Condition remark | ||
| 3-1 |
额定转速 Rated speed |
13500±10%RPM |
在额定电压和额定负载（振子）下。 AT rated voltage and rated load (vibration weight) |
|
| 3-2 |
额定电流 Rated current |
40MA | ||
| 3-3 |
堵转电流 Stall current |
100MA |
在额定电压下 At rated voltage |
|
|
3-4 |
启动电压 Starting voltage |
1.0V |
At rated load (vibration weight) Any position of rotor. |
|
| 3-5 |
绝缘电阻 Insulation resistance |
20MΩ |
在100V直流下，导线和机壳间 At dc 100V between lead wire and case |
|
| 3-6 |
端子阻抗 Terminal resistance |
30Ω |
在20℃下 At 20℃ |
|
| 3-7 | 导线 | 红蓝线40mm | ||
| 4.使用时注意事项/Matters to be paid attention to when using motor | ||||
|
4-1 电机在运输过程中应小心轻放，避免碰撞敲击引起的电机身和性能受损。 （Please lay the motors carefully in transportation to avoid any damage to the motor body or electric function because of collision .） 4-2 马达应避免高温放置，防潮、化学腐蚀，存储时间不超过6个月。 (Please don’t leave the motors in the environment of high temperature, high humidity and gas that will cause rust and corrosion. Please don’t store the motors for over 6 months.) 4-3 接电后不要经常性堵住机轴。 (Please don’t lock the motor shaft when the electric power is supplied.) 4-4 包装用吸塑盘包装，200个为一盘，然后纸箱封装。  |
||||
